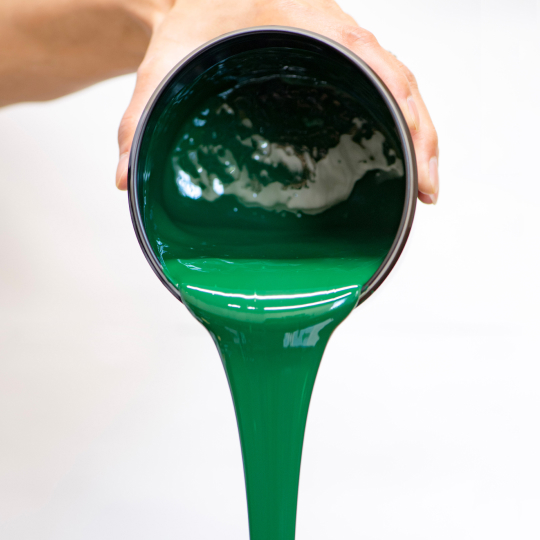

LIQUID PHOTOIMAGEABLE SOLDER MASK
Designed for High Performance Packaging Applications
Green Glossy Finish
Excellent Resistance to Heat Cycles
RoHS Compliant
Compatible with Lead-free Processing
Fine Dam Resolution
Low Water Absorption
Excellent Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
Designed for Flip Chip Packaging Applications
Green Glossy Finish
Low Water Absorption
Halogen-Free
Improved Resistance to Heat Cycles
RoHS Compliant
Compatible with Lead-free Processing
Fine Dam Resolution
Low Misting
Excellent Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
Available in 9 Colors (Red, Yellow, Green, Blue, Black, White, Clear, Orange & Purple)
Available in a DI version
BN(HV) is for Better Edge Coverage
BN(DG) is for a Darker Green Finish
RoHS Compliant
Meets Aerospace Outgassing Requirements
Compatible with Lead-free Processing
Fine Dam Resolution
Excellent Small Hole Clearing
Wide Processing Window
Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
Direct Imaging
Screen Print
Green Glossy Surface Finish
Extremely Fast Photospeed with DI Exposing Equipment
Fine Dam Resolution
Excellent Small Hole Clearing
RoHS Compliant
Halogen-Free
Compatible with Lead-Free Processing
Wide Processing Window
Withstands ENIG & Immersion Tin
Meets IPC-SM-840E Requirements
LIQUID PHOTOIMAGEABLE SOLDER MASK
Curtain Coat, Spray & Screen Print Application
Green Matte, Semi-matte & Satin Finish
Available in a DI Version
High Temperature Resistance for Automotive
Halogen-Free
TGIC-Free
I-907 – Free
RoHS Compliant
Excellent Coating Properties
Compatible with Lead-Free Processing
Wide Processing Window
High Reliability in Electrical Properties
Fine Dam Resolution
Excellent Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
Superior Crack Resistance for White Solder Mask
Bright White for LED Applications
Matte Surface Finish
Excellent Light Reflectance for LED Back Panels
Higher Photosensitivity than Standard White Solder Mask
Screen Print or Spray Application
RoHS Compliant
Compatible with Lead-Free Processing
Wide Processing Window
Withstands ENIG & Immersion Tin
Meets IPC-SM-840E Requirements
LIQUID PHOTOIMAGEABLE SOLDER MASK
Available in a Glossy Green, Satin Dark Green, Red, Yellow, Blue, Black, White and Clear
Halogen-Free
TGIC Free
RoHS Compliant
Meets Aerospace Outgassing Requirements
Compatible with Lead-free Processing
Fine Dam Resolution
Excellent Small Hole Clearing
Wide Processing Window
Excellent Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
Available in 6 Satin Colors (Red, Green, Blue, Black, White and Clear)
Also Available in Matte Blue and DI version
Halogen-Free
RoHS Compliant
Compatible with Lead-free Processing
Fine Dam Resolution
Fast Exposing Times
Wide Processing Window
Excellent Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
Screen Print or Spray Application
Designed specifically for the latest DI equipment
Available in dark green matte finish
Resistant to extreme temperatures of 200C for 2000 hours
RoHS compliant
Meets aerospace outgassing requirements
Compatible with lead-free processing
Excellent small hole clearing
Wide processing window
Fine dam resolution
Withstands ENIG and Immersion Tin
Low odor
Halogen Free
LASER DIRECT IMAGING SOLDER MASK
For LASER Direct Imaging (LDI) Exposing
Halogen-Free
Dark Green, Blue, Black, Clear & Red Satin Finish
RoHS Compliant
Compatible with Lead-Free Processing
Fine Dam Resolution
Excellent Small Hole Clearing
Wide Processing Window
Excellent Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
Brilliant White for LED Applications
Available in a DI Version
Excellent Light Reflectance for LED Back Panels
Higher Photosensitivity than Standard White Solder Mask
Excellent Color Retention through Assembly
Screen Print or Spray Application
Widely approved by LED End Users
RoHS Compliant
Compatible with Lead-Free Processing
Wide Processing Window
Excellent Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
Brilliant White for LED Applications
Available in a DI Version
Excellent Light Reflectance for LED Back Panels
Higher Photosensitivity than Standard White Solder Mask
Excellent Color Retention through Assembly
Screen Print or Spray Application
Widely approved by LED End Users
RoHS Compliant
Compatible with Lead-Free Processing
Wide Processing Window
Excellent Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
White color, Halogen free
Screen Print ApplicationÂ
Sulfur free
High resolution
High Reflectance
Excellent discoloration resistance against UV rays and heat
LIQUID PHOTOIMAGEABLE SOLDER MASK
Available in Green and Black with a Matte Finish
Available in a DI Version
Excellent Solder Ball Resistance
Resistant to no-clean Flux Residue
RoHS Compliant
Compatible with Lead-free Processing
Fine Dam Resolution
Excellent Small Hole Clearing
Wide Processing Window
Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
Superior Color Retention through Assembly
Bright White for LED Applications
Excellent Light Reflectance for LED Back Panels
Higher Photosensitivity than Standard White Solder Mask
Screen Print or Spray Application
RoHS Compliant
Compatible with Lead-Free Processing
Wide Processing Window
Withstands ENIG & Immersion Tin
UL Certified
Meets IPC-SM-840E Requirements
LIQUID PHOTOIMAGEABLE SOLDER MASK
For LASER Direct Imaging (LDI) Exposing
Available in Amber and Green Glossy Finish
Designed for Flexible Substrates
Low Warpage
Halogen-Free
RoHS Compliant
Compatible with Lead-Free Processing
Fine Dam Resolution
Excellent Small Hole Clearing
Wide Processing Window
Excellent Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
Designed for Flexible Printed Circuits on LDI equipment
Screen Print Application
Halogen-Free
Compatible with Lead-Free Processing
Fine Dam Resolution
RoHS Compliant
Excellent Resistance to ENIG, Immersion Tin and Immersion Silver
Green Glossy Finish
UL listed as VTM-0 on 2 mil Kapton
LIQUID PHOTOIMAGEABLE SOLDER MASK
Available in a Glossy Amber, Green, Black and White Finish
Designed for Flexible Substrates
Low Warpage
Halogen-Free
RoHS Compliant
Compatible with Lead-Free Processing
Fine Dam Resolution
Excellent Small Hole Clearing
Wide Processing Window
Excellent Resistance to Final Finishes
LIQUID PHOTOIMAGEABLE SOLDER MASK
For LASER Direct Imaging (LDI) Exposing
Available in Amber and Green Glossy Finish
Designed for Flexible Substrates
Low Warpage
Halogen-Free
RoHS Compliant
Compatible with Lead-Free Processing
Fine Dam Resolution
Excellent Small Hole Clearing
Wide Processing Window
Excellent Resistance to Final Finishes
INKJETABLE SOLDER MASK
UV / Thermal Curable
One-Component
Excellent Adhesion to Laminate with Dual Cure (UV + Thermal) Process
Tack-free after Printing due to On-head UV Lamp on Inkjet Head
Excellent Processability
 Green (IJSR-4000 JM03G) & Dark Green (IJSR-4000 JM02DG) Glossy Finish
INKJET ETCH RESIST
UV Curable Inkjet Etch Resist
Fast UV Curing
Applied with Piezo drop-on-demand (DOD) print head
Jet stability & low nozzle failure
Good settling stability
Low energy requirement (UV LED system; 360~420nm)Â
Good electroless nickel and gold plating Â
Excellent hardness and strip propertyÂ
RoHS approved & Halogen-freeÂ
PHOTOIMAGEABLE HOLE FILL MATERIAL
Photoimageable, Two Component Hole Fill
Green Color
Low Shrinkage
For Plated or Non-Plated Holes
Compatible with Solder Mask Top Coats
RoHS Compliant
Compatible with Lead-Free Processing
Wide Processing Window
Resistance to Final Finishes
SILVER CONDUCTIVE HOLE FILL MATERIAL
Conductive Silver, Single Component Hole Fill
Silver Color
Excellent Screening Characteristics to Fill Holes
Excellent Thermal Conductivity
Good Reliability and Compatibility with Copper Plating
RoHS Compliant
Compatible with Lead-Free ProcessingÂ
THERMALLY CURED GAP FILLING DIELECTRIC
Used to Fill High Copper Inner Layers to Achieve a Planar Outer Layer
Screen Print Application with Flame Resistant Properties
UL Listed
High Tg (160°C) and Low CTE (32/115 ppm)
100% Solids for Extremely Low Shrinkage and Ease of Planarization
No Chemical Attack through Desmear
Halogen Free
Excellent Adhesion between Layers
RoHS Compliant
Compatible with Lead-Free ProcessingÂ
PERMANENT HOLE FILL MATERIAL
Designed Specifically for Hole Filling Equipment to Fill Small Vias without Voids
Available in Cartridges and 1.3 Kg CansÂ
High Tg and Low CTEÂ
Very Low Shrinkage and Ease of PlanarizationÂ
No Chemical Attack through DesmearÂ
Halogen-Free and RoHS CompliantÂ
High PCT and Thermal Resistance
PERMANENT HOLE FILL MATERIAL
Available in a 1 and 5 kg ContainersÂ
One-Component Â
Very Low ShrinkageÂ
RoHS CompliantÂ
High PCT and Thermal ResistanceÂ
Halogen-Free
UV CURABLE HOLE FILL MATERIAL
UV Cure, Single Component Hole Fill
Light Green Color
Low Shrinkage with 100% Solids
For Plated or Non-Plated Holes
Compatible with Solder Mask Top Coats
RoHS Compliant
Compatible with Lead-Free Processing
Wide Processing Window
Resistance to Final Finishes
FLEXIBLE INKJET LEGEND INK
Inkjet Application with Fast UV Curing
Designed for Flexible Substrates
Excellent Adhesion to Semi and Fully Cured Solder Mask
Bright White Color
High Opacity and Non-Yellowing
Halogen-Free
Meets Aerospace Outgassing Requirements
RoHS Compliant
Excellent Color Retention
Excellent Heat Resistance in HASL
Excellent Resistance to Final Finishes
Compatible with Lead-Free ProcessingÂ
UV Curable Inkjet Marking Ink for LED Applications
For Printed Wiring Boards for Piezo Drop-on-Demand (DOD) Print Head
White Gloss Finish
Good Settling Stability, Jet Stability & Low Nozzle Failure
Excellent Adhesion
Good Surface Hardness
RoHS Compliant
Halogen-free
INKJET LEGEND INK
Inkjet Application with Fast UV Curing
Excellent Adhesion to Semi and Fully Cured Solder Mask
Black Color
Halogen-Free
Excellent Color Retention
Excellent Heat Resistance in HASL
Excellent Resistance to Final Finishes
Compatible with Lead-Free Processing
INKJET LEGEND INK
Inkjet Application with Fast UV Curing
Excellent Adhesion to Semi and Fully Cured Solder Mask
Bright White Color
High Opacity and Non-Yellowing
High Cured Hardness
Halogen Free
Meets Aerospace Outgassing Requirements
RoHS Compliant
Excellent Color Retention
Excellent Heat Resistance in HASL
Excellent Resistance to Final Finishes
Compatible with Lead-Free Processing
Compatible with Piezo drop-on-demand (DOD) print heads used by Orbotech, Microcraft and FirstEIE
LIQUID PHOTOIMAGEABLE LEGEND INK
Available in White (WL) and Yellow (YL)
Screen or Spray Application
Designed for High Definition of Small Characters
RoHS Compliant
Excellent Color Retention
Wide Process Window
Excellent Heat Resistance in HASL
Excellent Resistance to Final Finishes
Compatible with Lead-Free ProcessingÂ
WHITE THERMAL CURE LEGEND INK
Thermal Cure Legend/Marking Ink
Two-Components
Available in Black (E), White (W) and Yellow (Y)
White has a Long Mixed Pot Life (LP)
Excellent Printing Characteristics
Excellent Adhesion
RoHS Compliant
Excellent Color Retention
Excellent Heat Resistance in HASL
Excellent Resistance to Final Finishes
Compatible with Lead-Free ProcessingÂ
UV CURE LEGEND/MARKING INK
Single Component
Available in Black (UVR-182E) and White (UVR-110W).
Excellent Printing Characteristics
Excellent Adhesion
RoHS Compliant
Excellent Color Retention
Excellent Heat Resistance in HASL
Excellent Resistance to Final Finishes
Compatible with Lead-Free ProcessingÂ
THERMAL CURE SOLDER MASK
Thermal Cure Solder Mask, Two-Components
Available in Green Glossy Finish
Excellent Printing Characteristics
Excellent Adhesion
RoHS Compliant
Excellent Heat Resistance in HASL
Excellent Resistance to Final Finishes
Compatible with Lead-Free ProcessingÂ
THERMAL CURE SOLDER MASK
Bright White for LED Applications
Superior Color Retention through Assembly
Excellent Light Reflectance for LED Back Panels
Screen Print ApplicationÂ
Excellent Screening Properties
RoHS CompliantÂ
Halogen-FreeÂ
Compatible with Lead-Free Processing
Wide Processing WindowÂ
Withstands ENIG & Immersion Tin
UV CURABLE SOLDER MASK
UV Cure Touch Up Ink for PSR-4000 HFX, Single Component
Available in a Satin Blue, Green and Red
Excellent Adhesion
Short Cycle Time
RoHS Compliant
Excellent Heat Resistance in HASL
Excellent Resistance to Final Finishes
Compatible with Lead-Free ProcessingÂ
UV CURABLE SOLDER MASK
UV Cure Solder Mask, Single Component
Available in Green Glossy Finish
Excellent Printing Characteristics
Excellent Adhesion
Short Cycle Time
RoHS Compliant
Excellent Heat Resistance in HASL
Excellent Resistance to Final Finishes
Compatible with Lead-Free ProcessingÂ
UV CURED ETCH RESIST
Single Component
Screen Print Application
Excellent Printing Characteristics
Fast Stripping
RoHS CompliantÂ
PHOTOIMAGEABLE ETCHING/PLATING RESIST
Single Component
Screen Print Application
Fast Exposing
Excellent Developing Characteristics
Wide Processing Window
High Resolution Capabilities
Fast Stripping
RoHS CompliantÂ
THERMALLY CURED ETCH RESIST
Single Component
Screen Print Application
Excellent Printing Characteristics
Fast Stripping
RoHS Compliant
Final Finishing Plating
Reductions in brittle failures at solder joints (including lead-free solder)
A completely cyanide-free chemistry & RoHS compliant
Long shelf-life
Cost-effective
Aluminum Surface Treatment Paste
Taiyo Circuit Automation
Use Our Inks?
Save more by choosing TCA equipment!
Trust the global leader in Photoimageable soldermasks to supply and support not only your inks, but also your coating and drying equipment.
We combine our design and manufacturing capabilities with our highly rated customer support to ensure customers’ uptime reliability.
